HSS TWIST DRILL BIT
ITEM NO.：
MY-222701Material: HSS 4341
DIN338
Fully Ground
135° Split Point Tip
Straight Shank

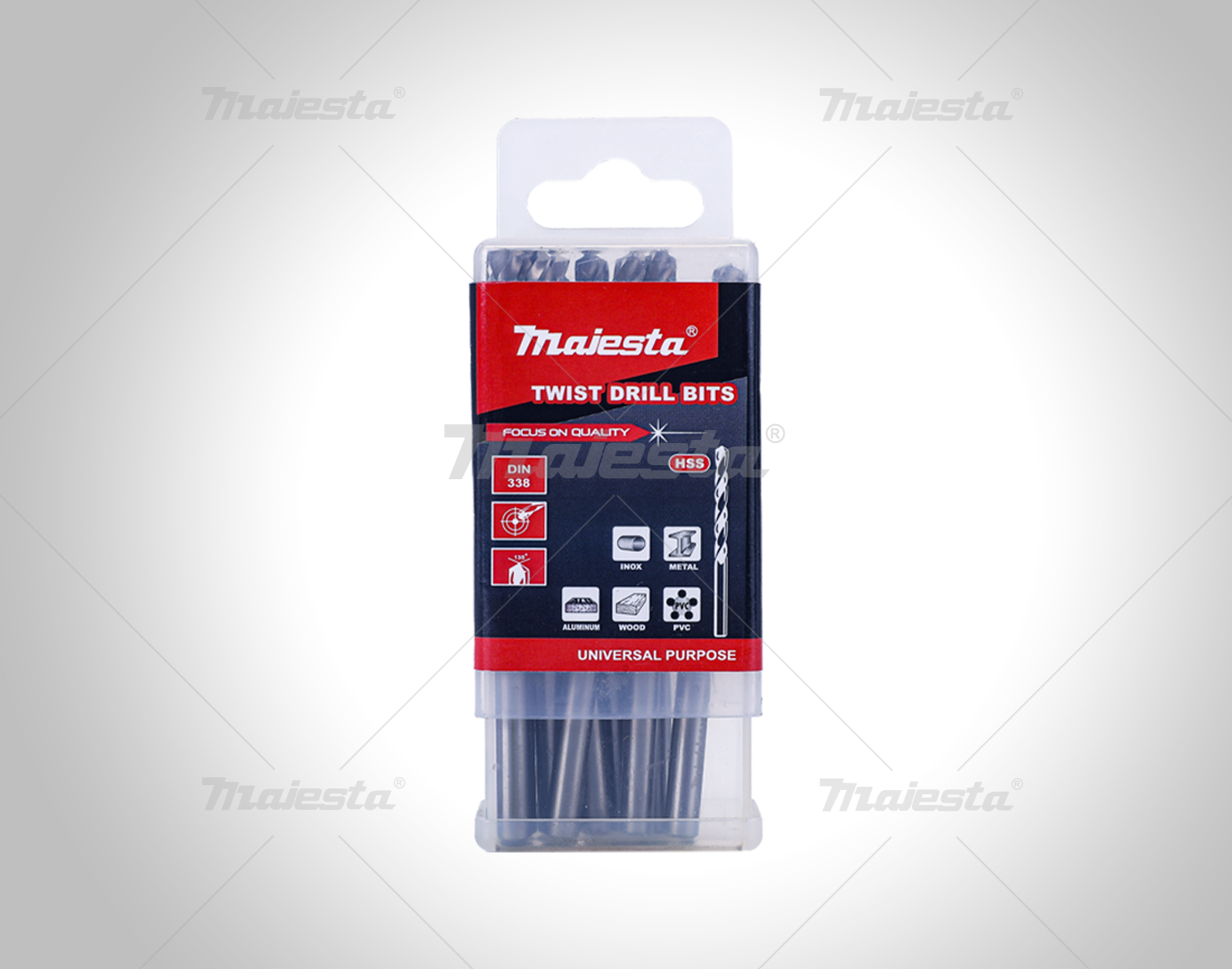

Packing: Plastic Box
ITEM NO. | DIA. | TOTAL LENGTH | FLUTE
LENGTH | QTY./ PLASTIC BOX | PLASTIC BOX /BOX | QTY./CTN |
| MT-2223010 | 1mm | 34mm | 12mm | 10 | 20 | 4000 |
| MT-2223015 | 1.5mm | 40mm | 18mm | 10 | 20 | 4000 |
| MT-2223020 | 2mm | 49mm | 24mm | 10 | 20 | 4000 |
| MT-2223025 | 2.5mm | 57mm | 30mm | 10 | 20 | 4000 |
| MT-2223030 | 3mm | 61mm | 33mm | 10 | 20 | 4000 |
| MT-2223035 | 3.5mm | 70mm | 39mm | 10 | 20 | 4000 |
| MT-2223040 | 4mm | 75mm | 43mm | 10 | 20 | 4000 |
| MT-2223045 | 4.5mm | 80mm | 47mm | 10 | 10 | 1000 |
| MT-2223050 | 5mm | 86mm | 52mm | 10 | 10 | 1000 |
| MT-2223055 | 5.5mm | 93mm | 57mm | 10 | 10 | 1000 |
| MT-2223060 | 6mm | 93mm | 57mm | 10 | 10 | 1000 |
| MT-2223065 | 6.5mm | 101mm | 63mm | 10 | 10 | 1000 |
| MT-2223070 | 7mm | 109mm | 69mm | 5 | 10 | 500 |
| MT-2223075 | 7.5mm | 109mm | 69mm | 5 | 10 | 500 |
| MT-2223080 | 8mm | 117mm | 75mm | 10 | 8 | 480 |
| MT-2223085 | 8.5mm | 117mm | 75mm | 10 | 8 | 480 |
| MT-2223090 | 9mm | 125mm | 81mm | 5 | 8 | 240 |
| MT-2223095 | 9.5mm | 125mm | 81mm | 5 | 8 | 240 |
| MT-2223100 | 10mm | 133mm | 87mm | 5 | 8 | 240 |
| MT-2223105 | 10.5mm | 133mm | 87mm | 5 | 8 | 240 |
| MT-2223110 | 11mm | 142mm | 94mm | 5 | 8 | 240 |
| MT-2223115 | 11.5mm | 142mm | 94mm | 5 | 8 | 240 |
| MT-2223120 | 12mm | 151mm | 101mm | 5 | 8 | 240 |
| MT-2223125 | 12.5mm | 151mm | 101mm | 5 | 8 | 240 |
| MT-2223130 | 13mm | 151mm | 101mm | 5 | 8 | 240 |
| MT-2223140 | 14mm | 160mm | 108mm | 1 | 25 | 100 |
| MT-2223150 | 15mm | 169mm | 114mm | 1 | 25 | 100 |
| MT-2223160 | 16mm | 178mm | 120mm | 1 | - | 100 |
| MT-2223170 | 17mm | 184mm | 125mm | 1 | - | 100 |
| MT-2223180 | 18mm | 191mm | 130mm | 1 | - | 100 |
| MT-2223190 | 19mm | 198mm | 135mm | 1 | - | 100 |
| MT-2223200 | 20mm | 205mm | 140mm | 1 | - | 100 |
-
